The line thickness is changed in each element in the property window or in the edit window.

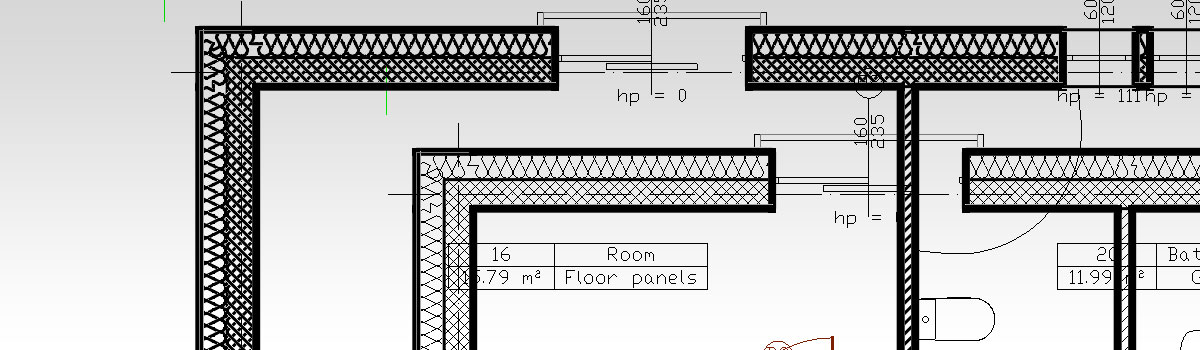

Wall hatching, columns and other elements cut by a cross-section or a level cut depends on the material that is set for the element or layer. Therefore, we do not change the thickness of the hatching where pens are defined.





Material, hatching type and its colour are defined in the properties window.





However, you will not find the hatching thickness here. The only place where you can change the thickness of the hatching line is in the Project Manager window and the colour icon of the appropriate group of elements. If you want to change the thickness of the wall hatching, click on the colour icon of the Walls group and here we change the thickness of the pen.





If elements are divided into groups, a different hatching thickness can be set for each group.



























































ArCADia BIM: How to Change the Thickness Of Wall Hatching?

15 September 2020
